Fig. 3: Olympus CX31 Microscope

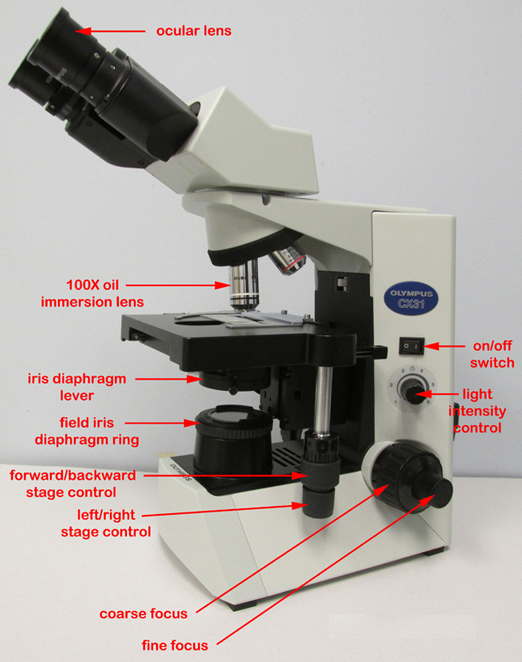

Photograph showing the right-hand side of an Olympus CX31 microscope with the parts labelled.

iris diaphragm lever: moving the lever to the left increases the light; moving the lever to the right decreases the light.
forward/backward stage control: moves the mechanical stage holding the slide forward and backward.
left/right stage control: moves the mechanical stage holding the slide left and right.
coarse focus: turning the knob away from you raises the stage; turning the knob towards you lowers the stage.
fine focus: turning the knob away from you raises the stage; turning the knob towards you lowers the stage.
